Step by step guide on how to make beams in after effects

Step by step guide on how to make beams in after effects-vbh
Tag: Videos
Author: Pawan Sajwan
Pawan Sajwan
Quick Links

Subscribe to Our Blog

Never Miss Any Update From Us !

With a lot of videos and designs on the web day by day, graphic designers or even video production companies have to explore more things and load themselves with effective tools. To be on top of the rising competition, there is a trend of mixing old and new tools to make the most out of their designs.

How to create a Step Text effect in Illustrator? [Step-by-step guide]

There are so many effects in After Effects that can help you in video editing or making wonderful animations. If you are a motion graphics designer like me, the beam effect is one such must-know effect in after effects.

In this blog, I will help you explore how beam effects can be used.

What is the Beam Effect?

The beam effect in After Effects allows you to adjust the qualities and movement of beams such as laser beams. You can be as creative as you can be according to the purpose and needs of your design.

When you use the beam effect, you can animate the beam by specifying a start and finish point. The beam appears finest when motion blur is employed, and the shutter angle is set to 360.

The Length control determines the length of the beam as a percentage of the Time value. A setting of 100%, for example, means that the visible beam length is at its maximum while the Time control is set to 50%. Time defines the time it takes the beam to travel from beginning to end as a percentage.

How to use the beam effect?

Now that you know what the beam effect is, I will now tell you how to make beams in After Effects. These step-by-step instructions will help you create beams for your graphics, videos, and animations.

The basic idea of the beam effect in the after effects is to create a beam between two points. There are a few controls that allow you to style and display it.

So let's start…

Step 1: Firstly, you need to create a new composition. You can select the width and height of the composition and can also set the frame rate.

After adjusting the width, height and setting up the frame rate, select a background color and start importing the graphic files by clicking on File> Import> File. Then, select your graphic file and import it.

Step by step guide on how to make beams in after effects 1

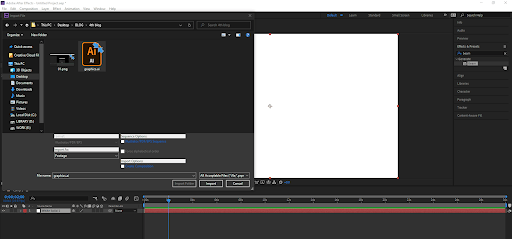

Step 2: By double-clicking on the project panel, you can import the graphic files by browsing them in the pop-up window.

Step by step guide on how to make beams in after effects 2

Step 3: Next, create a new solid layer by selecting the layer> new> solid layer.

Step by step guide on how to make beams in after effects 3

Step 4: Once you have imported the graphic file, you need to drag the files into the timeline.

Step by step guide on how to make beams in after effects 4

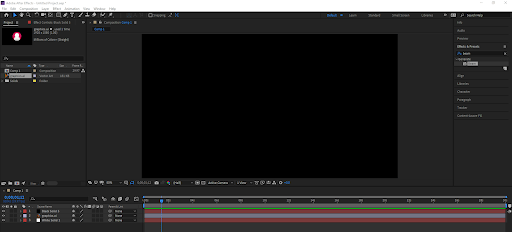

Step 5: Now, select the solid layer. You need to now go to the effects panel, which can be seen in the after-effects menu. There you need to search for the Beam effect and apply it to the solid layer.

Step by step guide on how to make beams in after effects 5

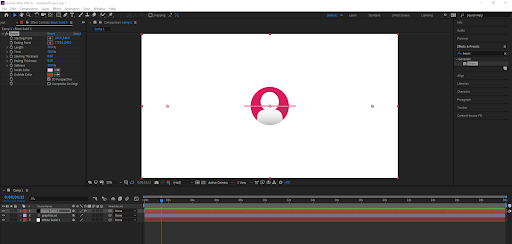

Step 6: Now, you need to select the solid layer open effects. Select it so that it will let you see the beam open. And after that, you will be able to adjust the length of graphics and icons.

Step by step guide on how to make beams in after effects 6

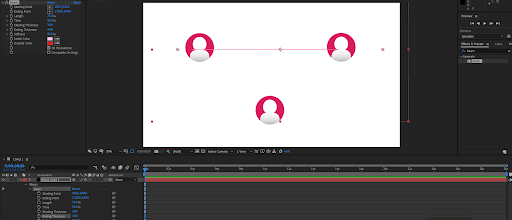

Step 7: Adjust the starting and ending thickness according to your design requirements.

Step by step guide on how to make beams in after effects 7

The Time and Length values are linked. Changing the time value will offset the beam's starting and ending points, cutting it off at those points. It can even be used as a blaster beam between the two points.

Make the best of camera tracking in After Effects with this easy guide

Step 8: Then, you can adjust the softness of the beam. By doing so, you can make the beam more or less blurry.

Step by step guide on how to make beams in after effects 8

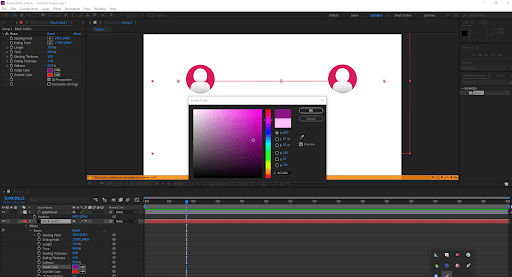

Step 9: Adjust the inside color and outside color. These are to create a glow or halo effect in the design.

Step by step guide on how to make beams in after effects 9

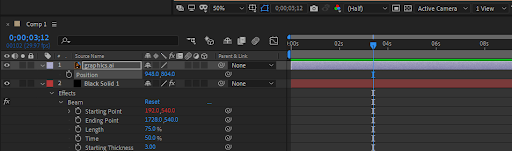

Step 10: Now, you need to select the graphic layer and press 'U' to let you see all the keyframes applied to any layer. In this case, the position keys will appear.

Step by step guide on how to make beams in after effects 10

Step 11: Now, select the solid layer effect > beam> starting point and parenting to get the position of the graphics.

Step by step guide on how to make beams in after effects 11

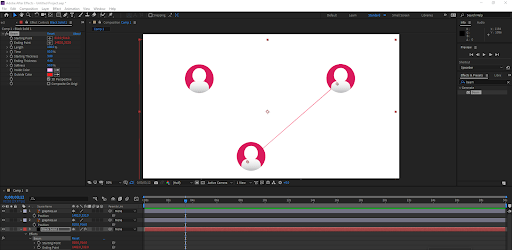

Step 12: Select from the ending point parenting to the second graphics position.

Step by step guide on how to make beams in after effects 12

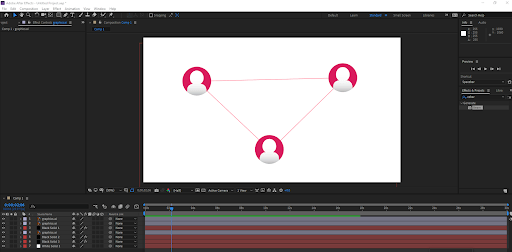

Step 13: Then wiggle in the graphics position.

Step by step guide on how to make beams in after effects 13



Wrapping Up

In this blog, I have demonstrated to you a simple way of using the beam effect in after effects. I hope this helps you in creating beams between two points or layers.

There are many more things you can do with beam effects and other effects available in after effects to enhance your logo animation, morph shapes, etc., according to your requirements of the design.

You may also check out various other things like masking in after effects, to gain more video editing tips.

If you are looking for video editing companies or explainer video production companies, contact us! We are here to assist you with the best expertise and skilled talents.
